PMCG-II-E series flex spline is a cup-shaped standard structure, input shaft connects with the harmonic gearbox gear box inner hole directly, fixed through a flat key connection. Generally, the circular spline is fixed, and the flex spline is connected to the output end.
Features of PMCG-Ⅱ-E Series Unit (Integral Cam) Strain Wave Gearing
Peak Torque: 23Nm to 802Nm
Maximum input speed: 4000-8000 r/min
Zero Backlash
High Accuracy
High Torsional Stiffness
High Efficiency
Robust Cross Roller Output Bearing
Customized Lightweight harmonic reduction gear solution is available
Competitive quality with the above advantages of strain wave gearing, inquiry PICEA MOTION to buy harmonic gear reduction

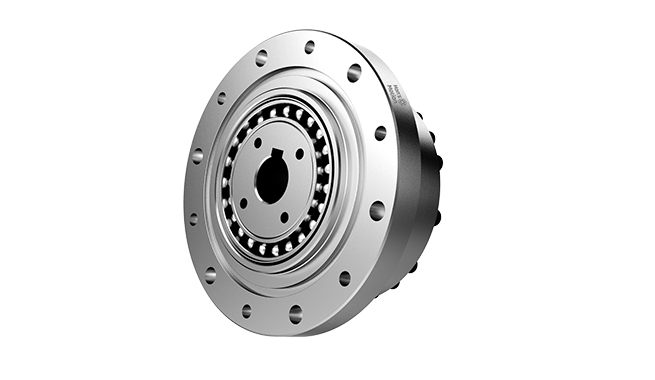

Parameters Of PMCG-II-E Series Unit Type (Integral Cam ) Harmonic Gearing
As a trustworthy and reliable harmonic drive manufacturers, we provide you with china harmonic reducer.
