PMCD is Ultra-flat harmonic gearbox, with characteristics as compact and lightweight, input and output coaxial, excellent positioning accuracy and rotation accuracy. Bulk strain gear drive reducer direct from China at competitive price, inquiry now

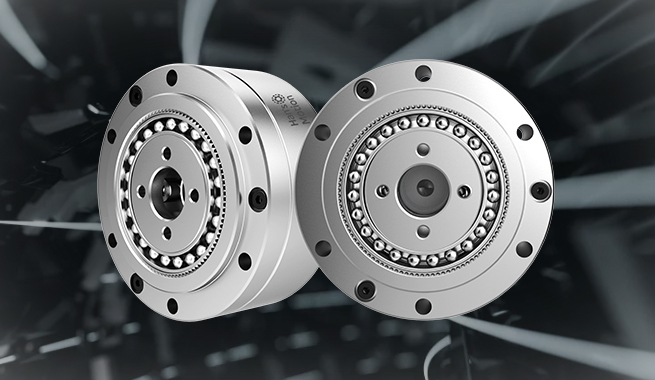

PMCD Series Harmonic Gearbox Cup Type List
PMCD-II Series Unit Type (Super-flat) Harmonic Gearing
PMCD-II is a highly compact and super flat with reinforced output bearing strain wave gears set. Due to its very short overall length and low weight, it can be used for space saving design installations. 5 sizes with 4 ratios are available.
Sealing Mechanism Of PMCG Series Harmonic Gearbox Cup Type
In Order To Prevent Lubricating Grease From Leaking And Keep The High Durability Of The Harmonic Red
Rotational motion part: oil seal (built-in spring). Please notice whether there is a scratch on the shaft side.
Flange mounting face, chimera: O-ring and sealant. Please notice whether the plane is skewed or the meshing of the O-ring; (for the O-ring and O- groove for reducer installation, See chart below of China harmonic reducer).
Screw hole part: use the screw locking agent with a sealing effect (Loctite 243 is recommended) or sealing tape.
For more information about strain wave gear price, please feel free to contact us!
If you are looking for a reliable strain wave gear manufacturer, please contact us.
As a trustworthy and reliable harmonic drive company, we provide you with harmonic drive china.
